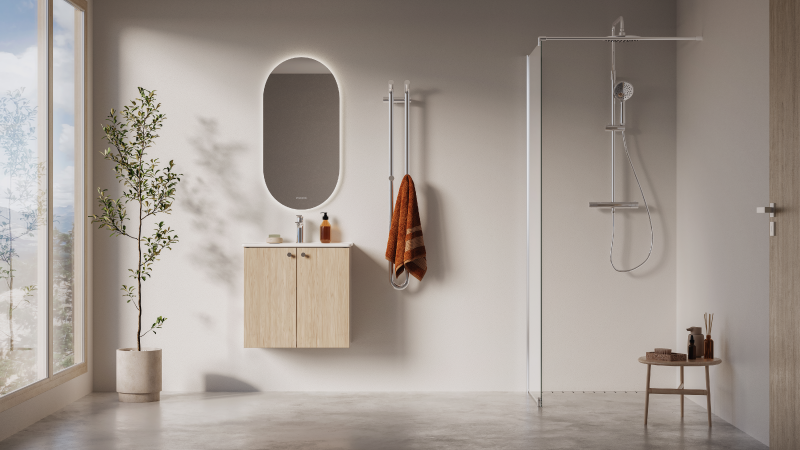

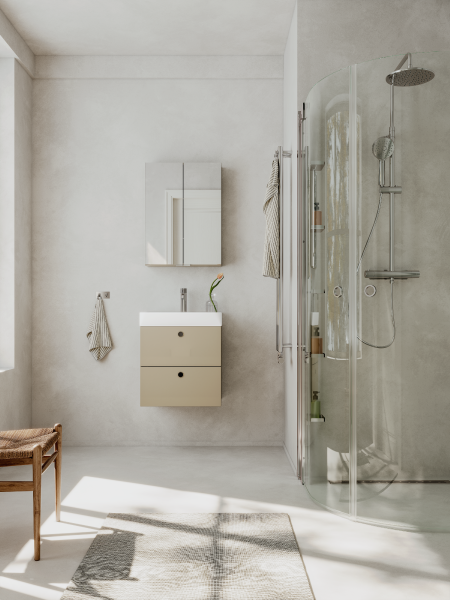

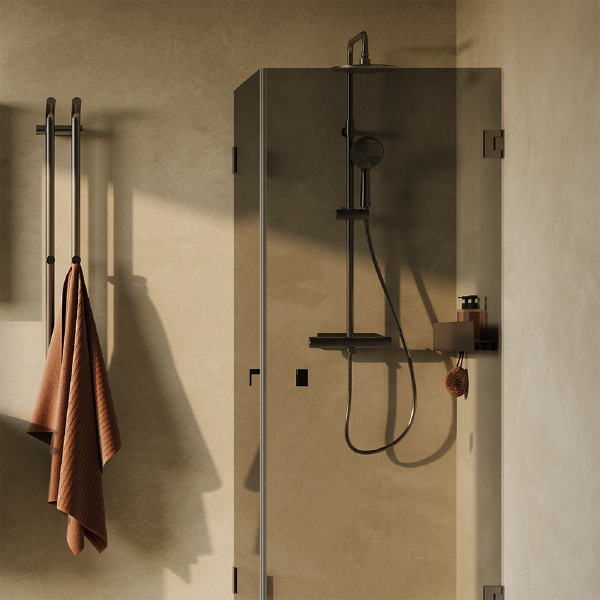

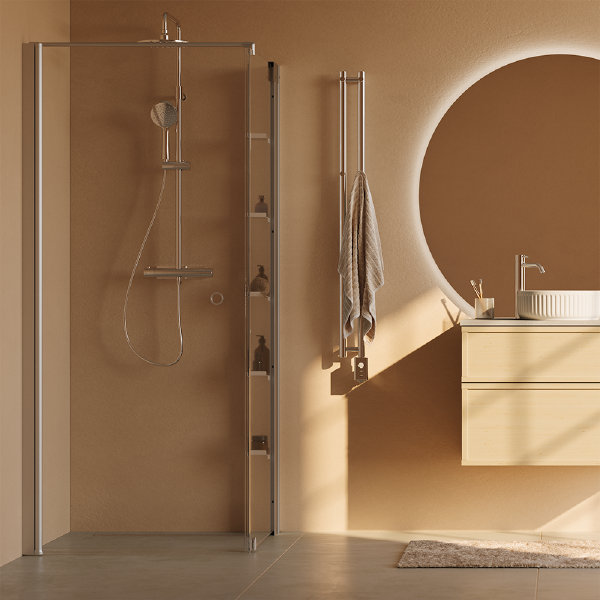

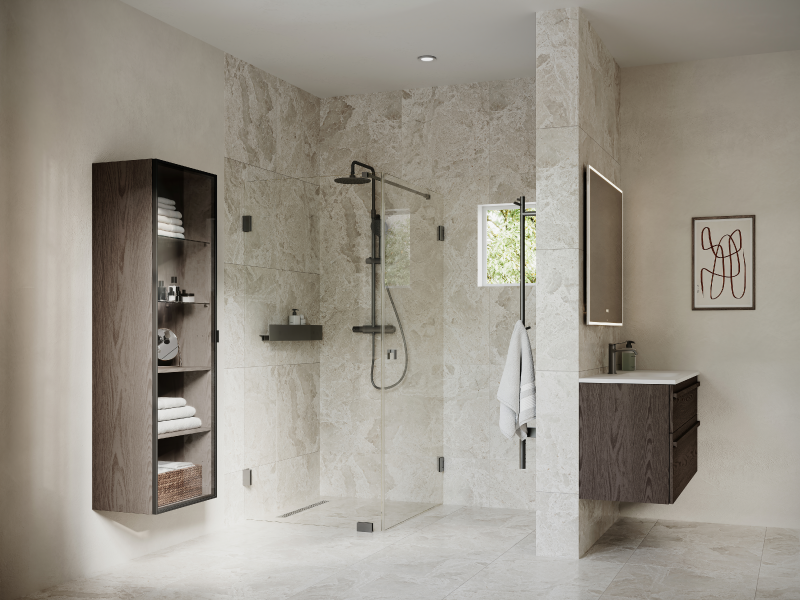

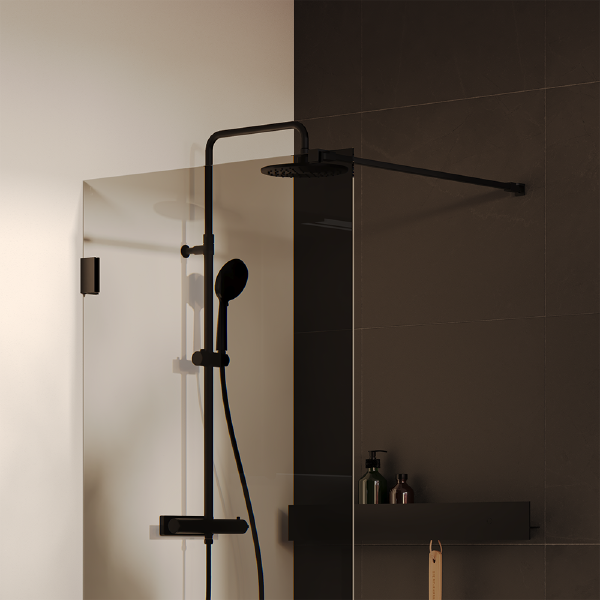

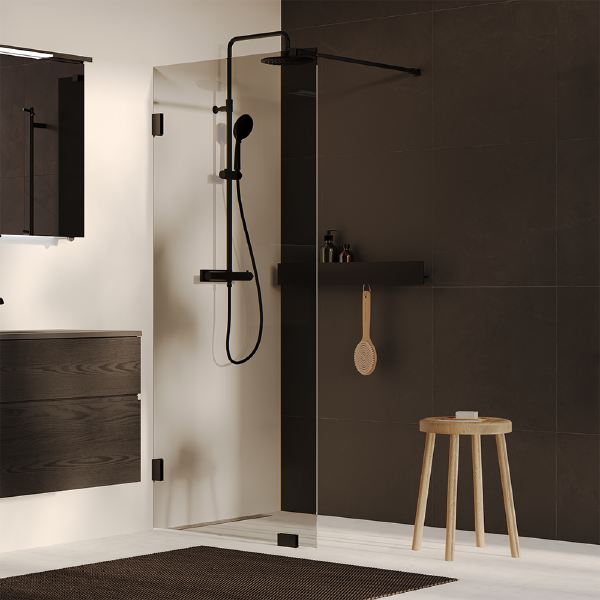

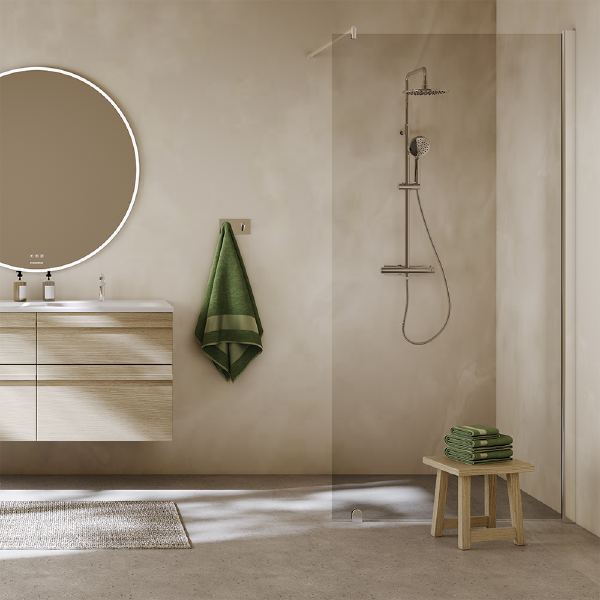

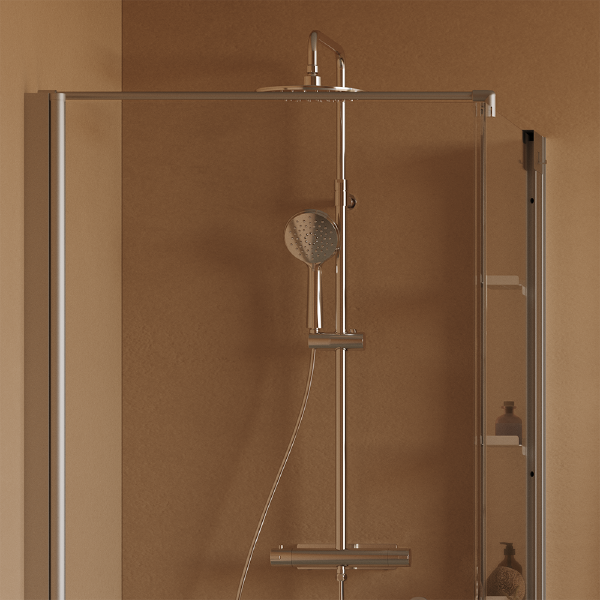

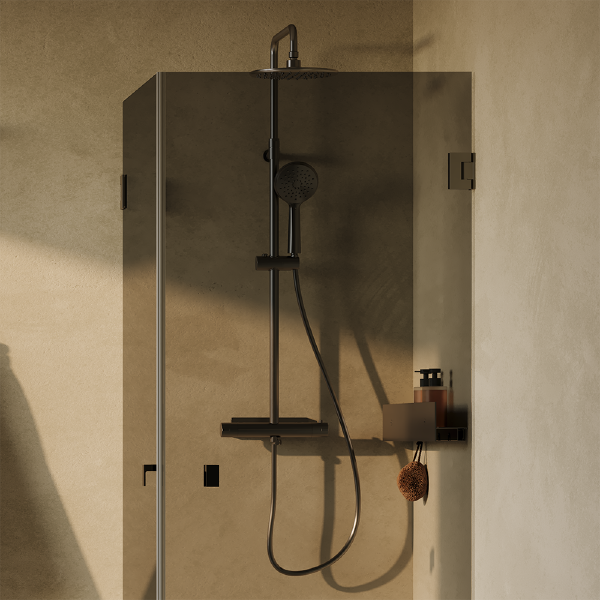

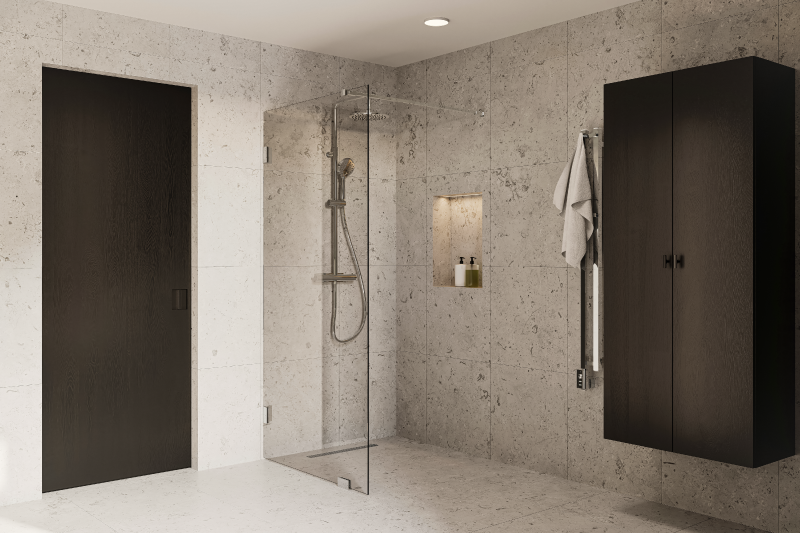

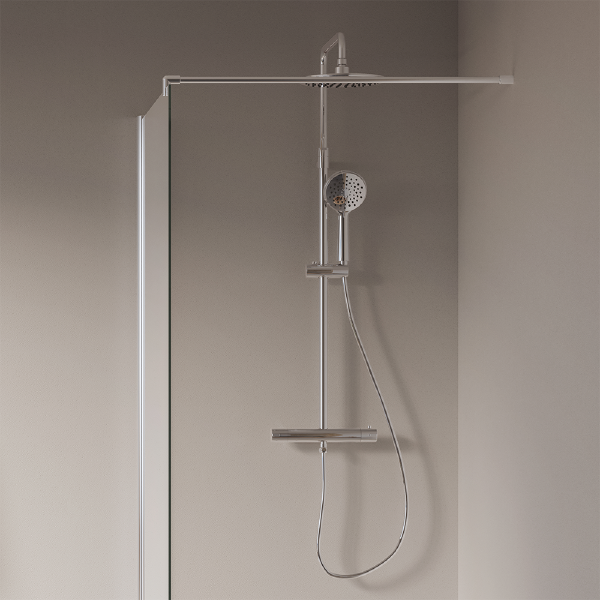

Yding overhead shower set

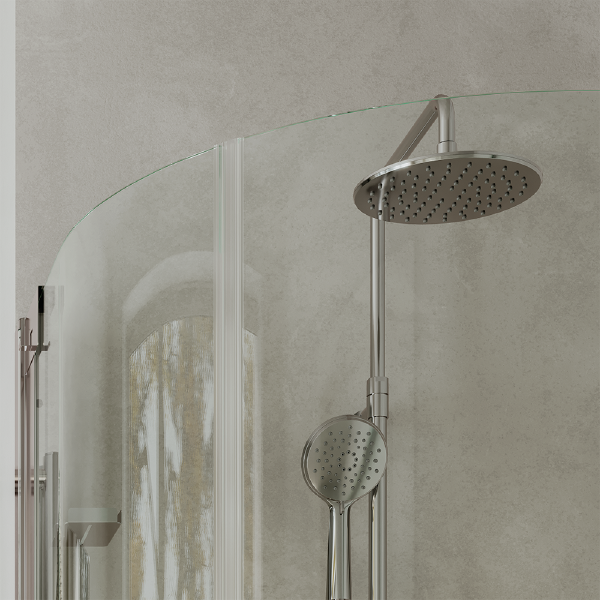

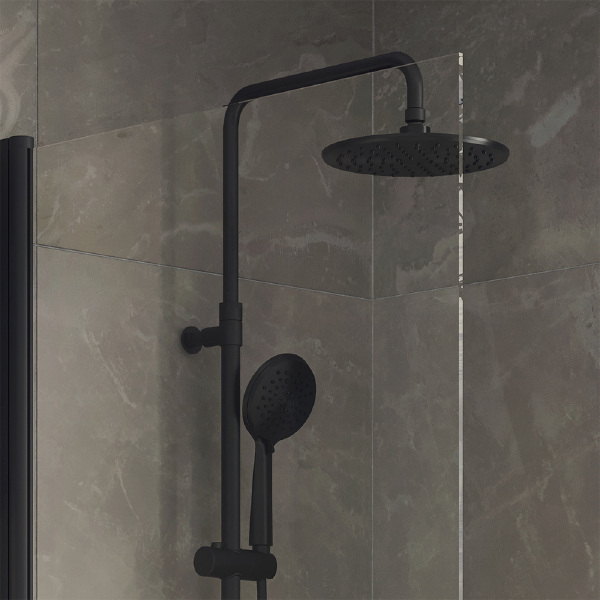

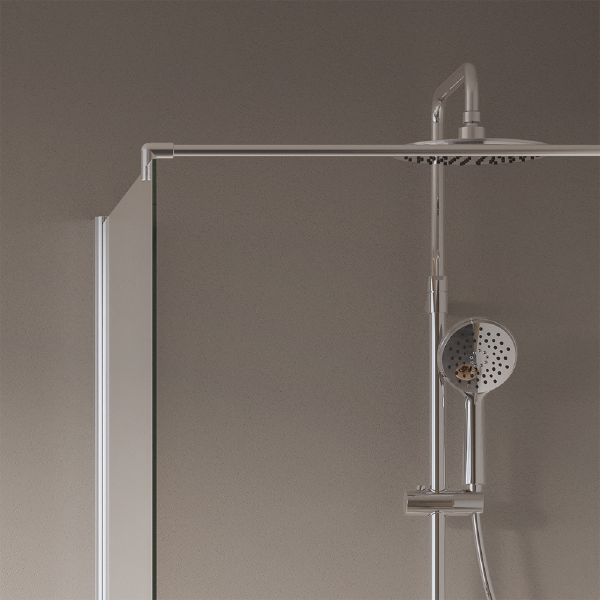

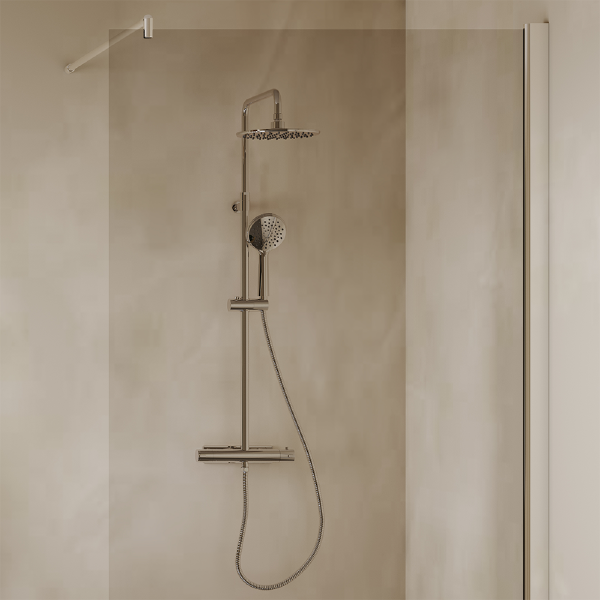

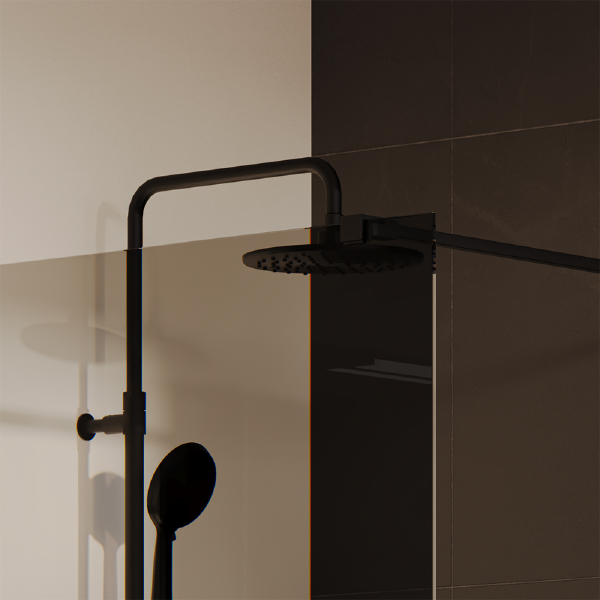

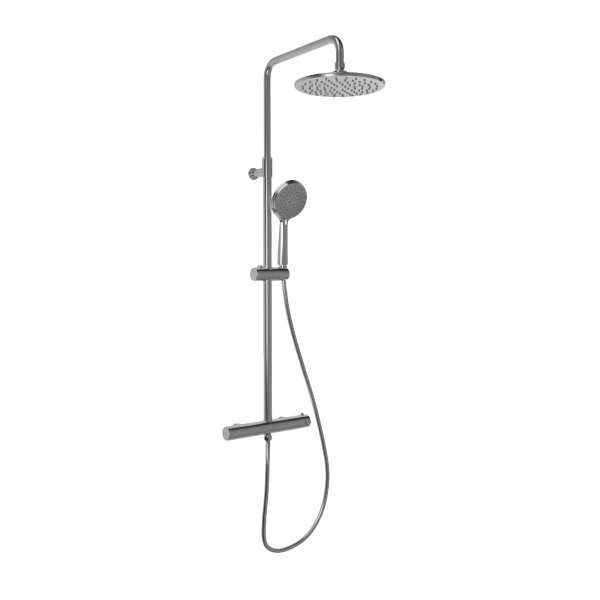

Yding is a complete overhead shower set with a large Ø23 shower head, hand shower and pressure-balanced thermostatic mixer. The hand shower offers a choice of three functions: soft comfort, massage or intensive jet spray. The overhead shower head is height-adjustable and can be supplemented with a extension hose.
Product information
-
-
Yding overhead shower set
• Energy class A.
• The thermostatic mixer is available in 150 cc (European standard) and 160 cc (old Swedish standard).
• Control unit with a ceramic seal to ensure a long lifespan.
• Temperature limiter at 38°C to allow for easy adjustment to normal water temperature.

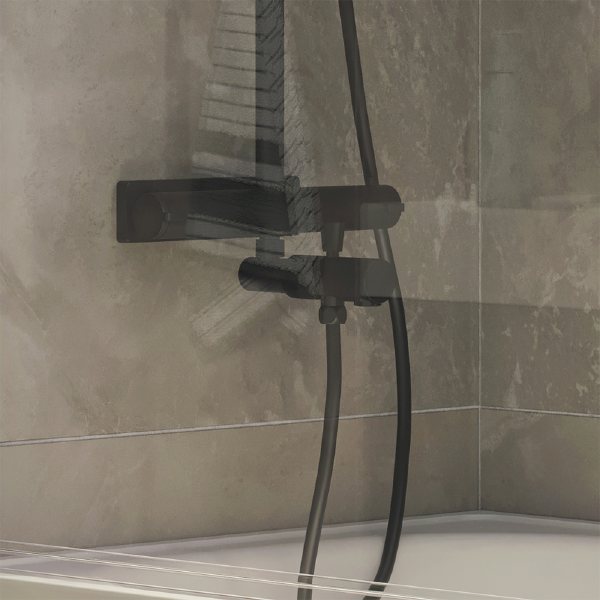

• Pressure-balanced mixer, which reacts rapidly to temperature and pressure fluctuations, ensuring an even water temperature.
• The pressure adjustment knob allows the user to choose if the water comes out of the overhead shower or hand shower.
• The overhead shower is can be swivelled and the height can be adjusted.

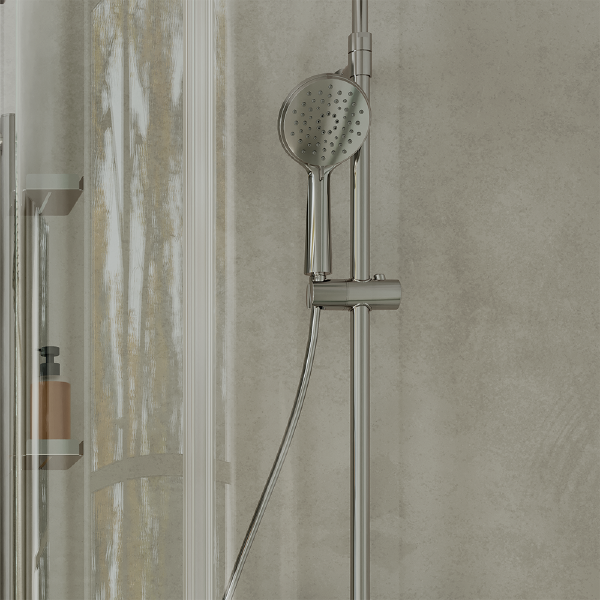

• Three-function hand shower, soft comfort, massage or intensive jet spray.
• Adjustable hand shower holder to allow for optimal positioning for each user.
• Smooth 1.5 m hose; hygienic, easy to keep clean and long lasting (compared to braided metal hoses).
• Shower hose the same colour as the mixer.

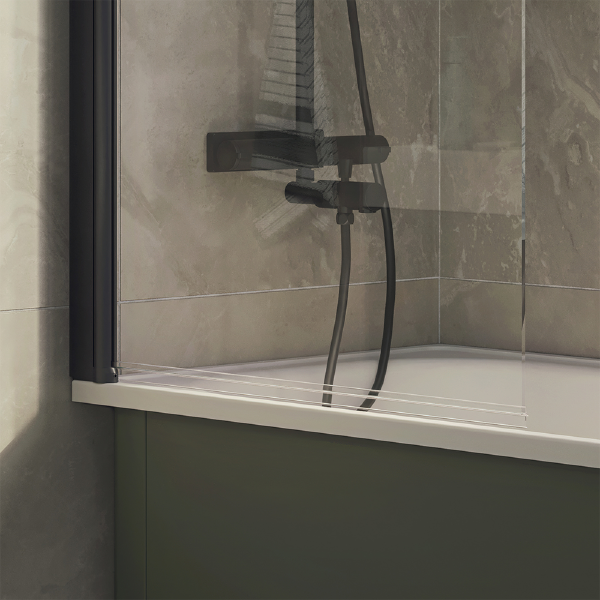

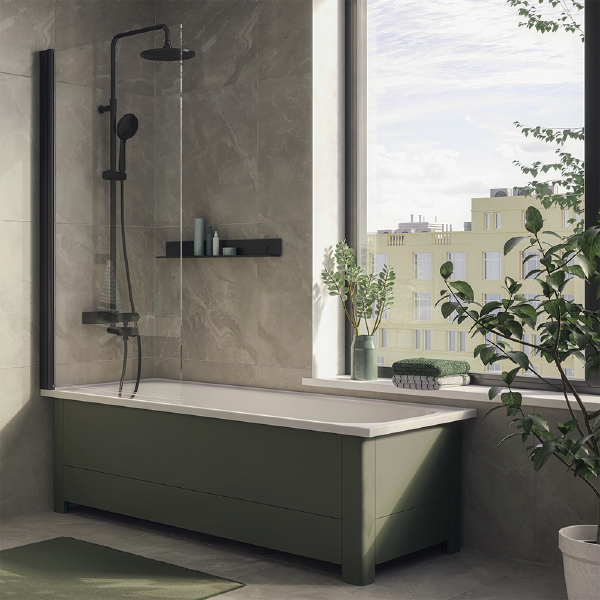

• Add a bath spout if you use a bath.
• Add an extension rod (90 cm) if the mixer is to be mounted lower, for example at bath height. This makes it possible to stand and shower in the bath.
• Type-approved non-return valves in the inlets, in accordance with standard SS-EN 1717.
• Safe water, approved wall mounting.
• The product comes with a five-year materials and performance guarantee. For full terms, please see svedbergs.com/customer-service/product-warranties/
-
-
-
-
-
-
-
Key Value Bath spout No CC 150cc / 160cc Colour Chrome / Pencil black / Black matt Energy class A 1.5 kWh Grip Tvågrepps Material Brass Operating pressure Up to 10 bar Shower head Ø230 mm Shower hose 1500 mm Thermostat Yes Type of product Overhead shower set
-
